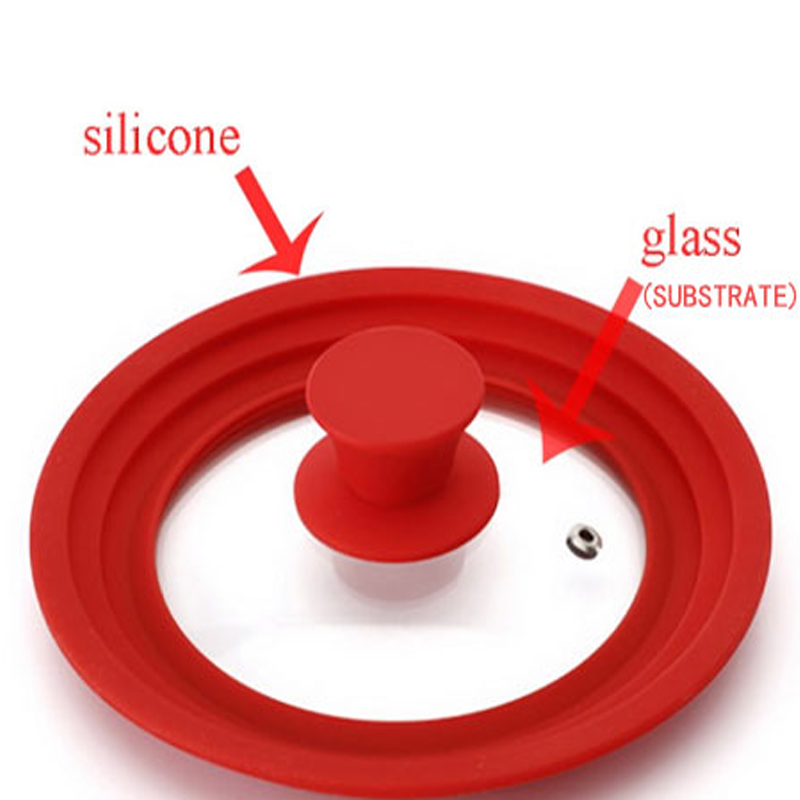

Rubber overmolding, also referred to as silicone overmolding or insert molding, is an innovative manufacturing process that integrates rubber materials with various substrates, such as metals and plastics, to enhance the performance and functionality of the final product. This technique is commonly used to bond silicone rubber to metal or plastic components, creating a durable, high-performance bond that exceeds the strength of traditional glued or assembled parts. The process involves covering, bonding, or encapsulating a range of high-temperature-resistant substrates, including steel, stainless steel, brass, aluminum, and various types of plastics, with rubber materials like silicone.
This article explores the fundamentals of rubber overmolding and insert molding, offering an in-depth look at the materials, processes, and applications. Additionally, it highlights the advantages of using rubber overmolding in manufacturing and the critical design considerations for ensuring optimal performance in different industries.
Understanding Rubber Overmolding and Insert Molding

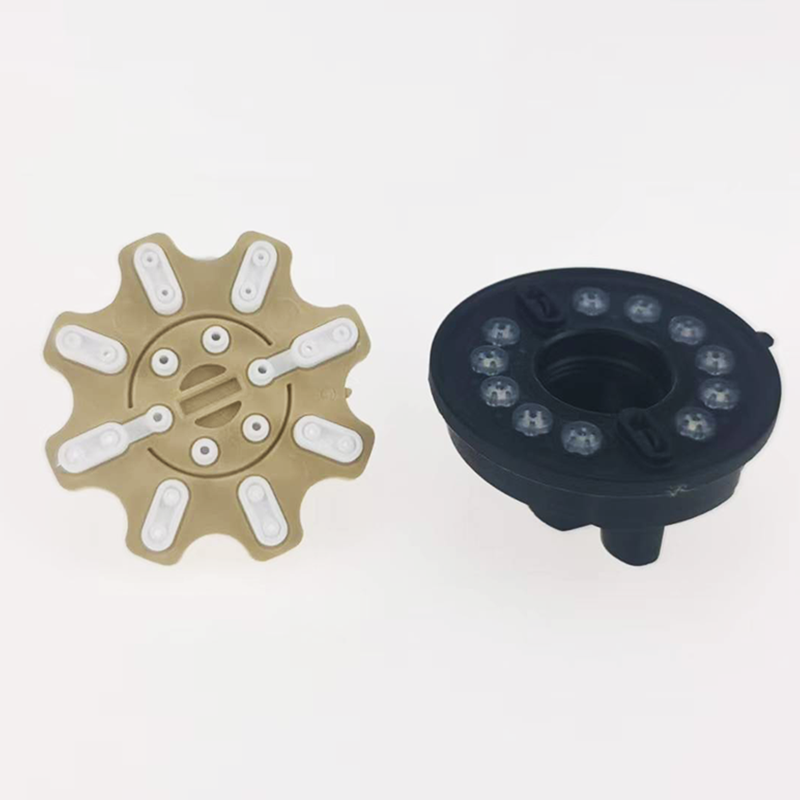

Rubber overmolding is a process that uses silicone rubber to overmold onto a pre-existing substrate, typically a metal or plastic component. The goal is to improve the mechanical properties, aesthetic appearance, and functionality of the final product by combining the best features of different materials into a single, cohesive component. There are two primary types of rubber overmolding: rubber-to-metal bonding and rubber-to-plastic overmolding.
Insert molding, a related technique, involves the placement of pre-formed inserts (typically made from metal or plastic) into the mold before injecting the silicone rubber around them. This creates a permanent bond between the rubber and the insert, without the need for additional adhesives or assembly steps.
Both processes offer several advantages, including increased product durability, enhanced sealing capabilities, and improved resistance to wear and tear. These benefits make rubber overmolding and insert molding ideal for applications in industries such as medical devices, automotive, aerospace, electronics, and consumer goods.
Materials Used in Rubber Overmolding
A variety of materials can be used in the rubber overmolding process, depending on the specific application and desired properties of the final product. Common rubber materials used in overmolding include:
– Silicone Rubber (HCR and LSR): Silicone is the most popular rubber material used in overmolding due to its excellent temperature resistance, flexibility, and chemical stability. There are two main types of silicone used for overmolding: High-Temperature Cured Rubber (HCR) and Liquid Silicone Rubber (LSR). HCR is typically used in compression molding, while LSR is injected into molds using advanced injection molding techniques for more complex geometries and higher production volumes.
– Nitrile (NBR): Known for its resistance to oils, fuels, and chemicals, nitrile rubber is often used in automotive and industrial applications that require durability in harsh environments.
– Ethylene Propylene Diene Monomer (EPDM): EPDM is favored for its excellent resistance to heat, ozone, and weathering, making it a popular choice for outdoor and automotive applications.
– Fluorocarbon Rubber (FKM/Viton): FKM is used in applications that require resistance to high temperatures and aggressive chemicals. This material is commonly used in automotive and aerospace components.
– Neoprene (CR): Neoprene is versatile, offering resistance to oil, water, and weathering, and is commonly used in industrial applications.
The Overmolding Process
The overmolding process typically involves two main stages: preparation of the substrate and the molding process itself. During the preparation stage, the substrate material is thoroughly cleaned and sometimes coated with a bonding agent to improve adhesion between the rubber and the substrate.
The molding process begins by placing the substrate into the mold cavity, followed by the injection or compression of the rubber material. For silicone overmolding, this is done using either compression molding or injection molding. Compression molding is typically used for high-temperature vulcanization (HTV) silicone materials, while injection molding is used for liquid silicone rubber (LSR), which provides more flexibility for complex designs and faster cycle times.
Once the rubber is injected or compressed into the mold, it is cured using heat. The curing process crosslinks the rubber molecules, ensuring that the rubber bonds securely to the substrate. The final product is then ejected from the mold and undergoes any necessary post-processing steps, such as trimming, inspection, or additional testing.
Challenges in Rubber Overmolding and Insert Molding
While rubber overmolding and insert molding offer numerous advantages, there are several challenges that must be addressed to ensure successful production:
- Adhesion Between Materials: One of the key factors in ensuring a strong bond between the rubber and substrate is proper adhesion. The selection of the right bonding agents is critical to achieving a reliable bond. In some cases, the use of primers or adhesion promoters is necessary to enhance the bonding strength.
- Flash Formation: Flash occurs when excess material escapes from the mold cavity, creating unwanted overflow. This can happen due to improper mold design, incorrect injection pressure, or poor mold alignment. Ensuring precise mold design and proper process control can help minimize the formation of flash.
- Material Compatibility: The rubber and substrate must be compatible in terms of temperature resistance, chemical properties, and mechanical strength. For example, certain plastics may not be suitable for overmolding with silicone if their heat resistance is too low. Material compatibility testing is essential to ensure a successful overmolding process.
- Mold Design: Proper mold design is crucial for successful overmolding. Features such as parting lines, gating systems, and venting must be carefully considered to ensure uniform material flow and prevent defects. Additionally, the mold must be designed to securely hold the substrate in place during the overmolding process to prevent misalignment.
Advantages of Rubber Overmolding
There are numerous benefits to using rubber overmolding in manufacturing, including:
– Improved Durability: Rubber overmolding creates a bond that is stronger and more durable than glued or assembled parts. This makes the finished product more resistant to wear, chemicals, and environmental factors, ensuring longer-lasting performance.
– Cost-Effective Manufacturing: By eliminating the need for additional assembly steps, rubber overmolding can reduce production time and labor costs. The process is highly automated, making it ideal for high-volume production.
– Enhanced Product Functionality: Rubber overmolding allows for the combination of different materials to achieve enhanced functionality. For example, soft rubber can be overmolded onto a hard plastic or metal part to create a non-slip grip, vibration damping, or enhanced sealing.
– Design Flexibility: Rubber overmolding offers significant design flexibility, allowing manufacturers to create products with multiple materials and colors in a single molding cycle. This results in products with improved aesthetics and functionality, all while reducing the number of parts and assembly steps.
Applications of Rubber Overmolding
Rubber overmolding is widely used in a variety of industries, including:
– Medical Devices: Rubber overmolding is commonly used in the medical industry to create products such as surgical tools, seals, and handles. Silicone overmolding is especially popular due to its biocompatibility, making it suitable for use in medical applications where safety and hygiene are paramount.
– Automotive: Rubber overmolding is used in automotive applications such as vibration isolators, gaskets, seals, and vibration dampers. The ability to combine rubber with metals and plastics ensures that these components perform well under extreme conditions.
– Electronics: Rubber overmolding is used to improve the durability and waterproofing of electronic devices. For example, silicone rubber is often used to overmold connectors, switches, and keypads, providing a protective barrier against dust, moisture, and wear.

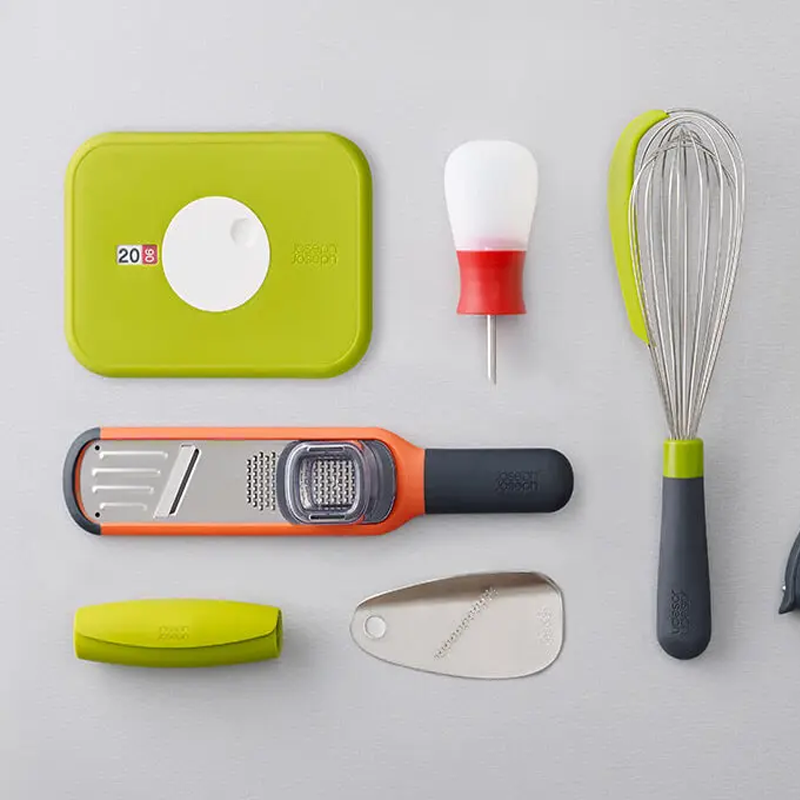

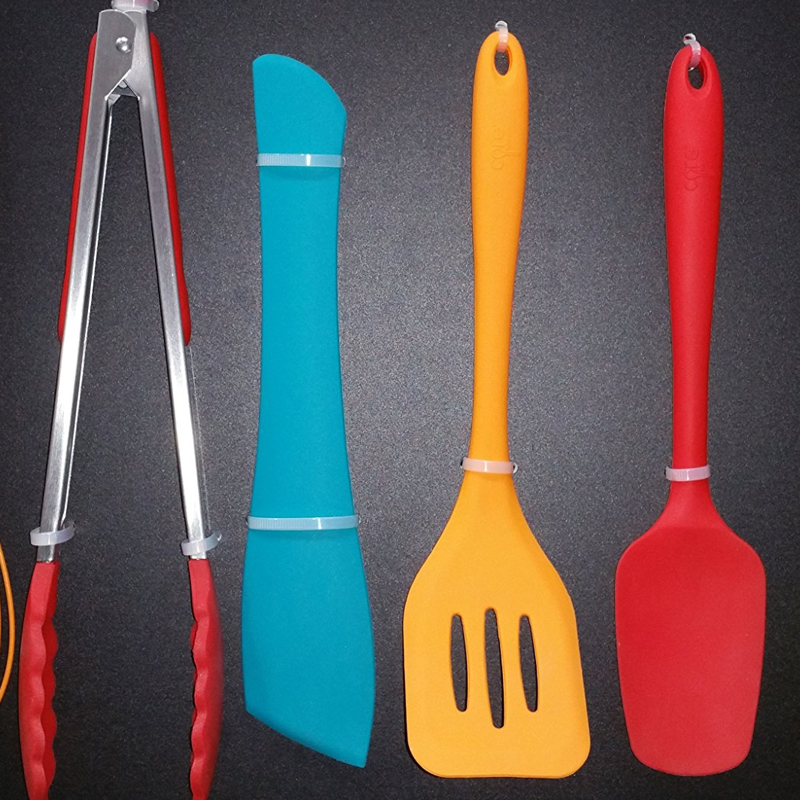

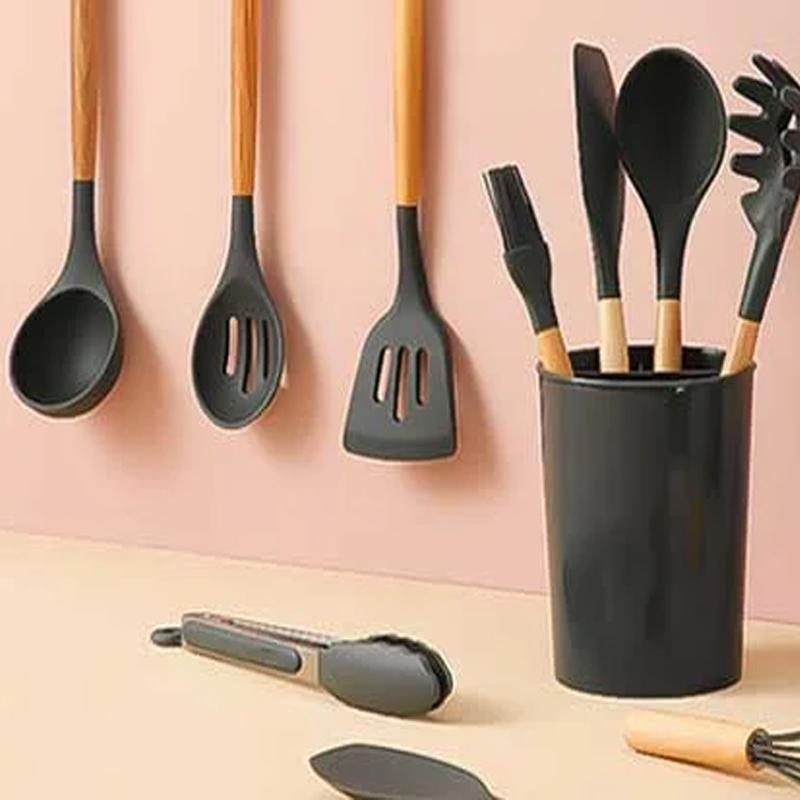

– Consumer Goods: Rubber overmolding is frequently used in consumer products such as tools, household items, and sports equipment. Overmolding provides enhanced ergonomics, better grip, and improved durability.
– Military and Aerospace: Rubber overmolding is used to create components that require both flexibility and toughness, such as gaskets, seals, and vibration isolators, which are critical in military and aerospace applications.
Conclusion
Rubber overmolding and insert molding are advanced manufacturing processes that offer exceptional benefits in terms of durability, functionality, and cost-effectiveness. By combining rubber with a wide range of substrates, manufacturers can create products that are stronger, more reliable, and better suited to meet the demands of industries such as medical, automotive, electronics, and aerospace.
