In the injection molding process, many components are manufactured using thermoplastics or thermosets, with liquid silicone rubber (LSR) being a top choice among thermosets. LSR injection molding offers a highly efficient and cost-effective solution for producing flexible, impact-resistant, and temperature-resistant parts. The process takes liquid silicone rubber from its uncured form and molds it into durable, finished components. This technique is ideal for producing a wide variety of silicone products, including gaskets, kitchen tools, over-molded parts, and more.
In this comprehensive blog, we’ll explore everything you need to know about LSR injection molding—from the processing equipment and working principles to applications, benefits, and important considerations. Whether you’re looking to manufacture silicone products or explore the advantages of LSR technology, this guide will cover it all.
An Overview of Liquid Silicone Rubber
Silicone rubber, a thermoset elastomer, consists of a backbone of alternating silicon and oxygen atoms with attached methyl or vinyl side groups. The presence of these methyl groups gives silicone rubber its remarkable hydrophobic properties, making it highly effective for electrical insulation applications.
Liquid Silicone Rubber (LSR) is a high-purity, platinum-cured silicone known for its excellent fluidity and versatility. It is typically injected into a mold cavity to produce precise, high-quality parts. LSR exhibits a low compression set, high stability, and resistance to extreme temperatures, both hot and cold. This material is widely used in various applications such as seals, sealing membranes, electrical connectors, multi-pin connectors, infant care products, and kitchen goods, especially where smooth surfaces and durability are essential.
Main Advantages of Liquid Silicone Rubber (LSR):
Odorless and Tasteless: LSR is completely free of any taste or odor, making it an ideal material for producing food-grade, beverage-related, and baby products.
Superior Mechanical Performance: LSR offers excellent elongation, high tensile and tear strength, as well as exceptional flexibility, making it suitable for a wide range of demanding applications.
Exceptional Durability: Designed to endure extreme temperatures, LSR parts are well-suited for both indoor and outdoor use, withstanding conditions from harsh heat to severe cold.
Chemical Resistance: LSR resists water, oxidation, and various chemical solutions such as acids and alkalis, and it can be sterilized using different methods.
Temperature Stability: LSR maintains its mechanical properties across a broad temperature range, from -60°C to 250°C, ensuring reliability in extreme environments.
Biocompatibility: Hypoallergenic and resistant to bacterial growth, LSR is safe for contact with human tissue and fluids, making it suitable for medical and healthcare applications.
Electrical Insulation: LSR possesses excellent insulating properties, capable of functioning in both high and low temperatures, far exceeding traditional insulating materials.
Customizable Transparency and Color: Naturally translucent, LSR’s base white color allows for easy pigmentation, enabling the production of custom-colored items to meet specific design needs.
What Is Liquid Silicone Rubber Injection Molding
Liquid Silicone Rubber (LSR) injection molding, also known as Liquid Injection Molding (LIM), is a thermosetting process used to mass-produce highly flexible, durable, and precision-engineered silicone parts. This process begins by blending two components, typically a silicone base and a platinum catalyst, which are then injected into a mold where the material undergoes heat curing. During the process, these compounds require thorough mixing while being kept cool before being injected into a preheated mold cavity, where the silicone solidifies into the desired shape.
This method offers several advantages, including ease of manufacturing, consistent part quality, and the ability to produce parts in large volumes efficiently. LSR injection molding is ideal for applications requiring high durability, as it boasts a low compression set and excellent resistance to extreme temperatures. Its versatility makes it an attractive choice across a range of industries such as automotive, healthcare, electronics, consumer goods, infant care, and general industrial sectors. By leveraging the ease of molding LSR, these industries benefit from more efficient and cost-effective production processes.

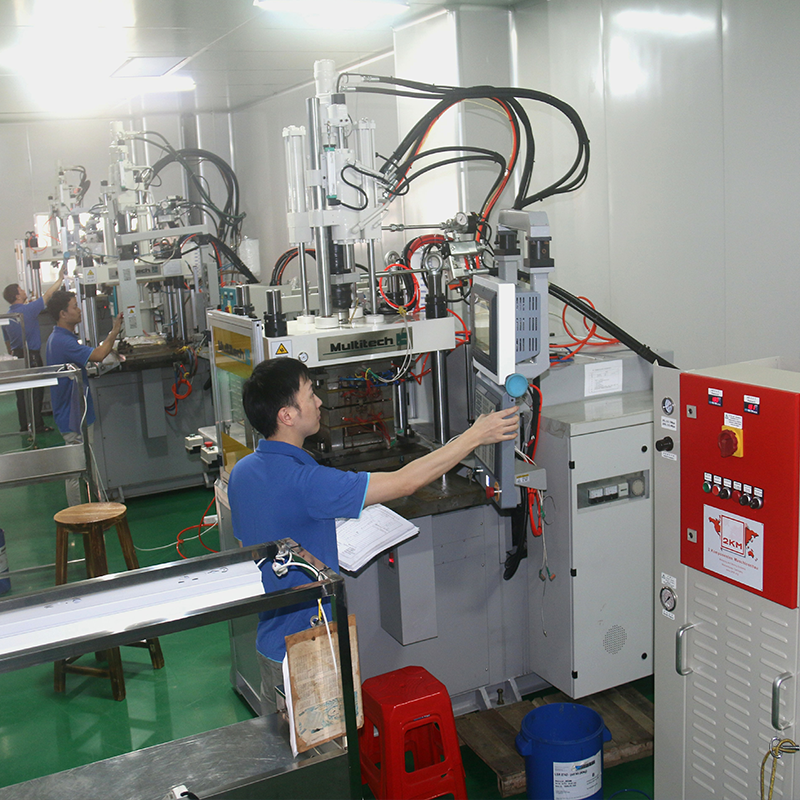

How Liquid Silicone Rubber Injection Molding Works
Liquid silicone rubber (LSR) injection molding operates by injecting low-viscosity LSR into a mold cavity, where it cures rapidly into the final part. Here’s a step-by-step breakdown of the process:
Step 1: Molding Tool Creation
First, a mold for the liquid silicone rubber process is designed and fabricated using CNC machining. This mold must be highly resistant to elevated temperatures required in LSR molding. Depending on the desired finish, the mold surface can be polished or textured. Once completed, the mold is installed in an injection molding press specifically designed for LSR.
Step 2: Material Preparation
Liquid silicone rubber is prepared in two separate containers—one holding the base material and the other containing the platinum-based catalyst. These two components are fed into a metering pump, which mixes them at a 1:1 ratio. Color pigments or other additives can be introduced at this stage. The mixture is then delivered to a static mixer to ensure thorough and consistent blending.
Step 3: Material Injection
The LSR blend is heated and injected into the mold cavity at high pressure through a nozzle. As it fills the mold, the silicone conforms to the intricate details of the cavity. The mold design dictates the shape and characteristics of the final LSR product, ensuring precise replication.
Step 4: Curing
Once the mold is filled, it is heated to initiate the curing process, transforming the liquid silicone into a solid form. The curing time depends on the complexity and size of the part being produced.
Step 5: Cooling and Demolding
After curing, the part is allowed to cool and is then removed from the mold. In many cases, automated systems are used for this step, although manual removal may still be required in smaller-scale operations. Flashing is rare due to the nature of LSR and the precision of the molding process.
Step 6: Secondary Operations
After demolding, some parts may require additional post-molding processes, such as trimming, printing, or assembly. These secondary operations ensure that the final product meets all specifications, such as finishing touches, assembly, or post-curing for enhanced properties.
Advantages of Liquid Silicone Rubber (LSR) Injection Molding
LSR injection molding is an optimal process for manufacturing precision silicone parts, delivering exceptional dimensional accuracy, intricate designs, and high-quality surface finishes. Here are the key benefits:
Durability
LSR-molded components exhibit outstanding resistance to UV rays, ozone, and offer superior electrical insulation. This makes them ideal for use in gaskets, cushioning pads for portable communication devices, ruggedized electronics, and numerous other demanding applications.
High-Precision Manufacturing
The injection molding process for LSR allows for the production of highly complex parts with tight tolerances. LSR flows easily into intricate mold cavities, ensuring precise replication of detailed features and dimensions.
Minimized Flash
Due to LSR’s low viscosity, the material fills mold cavities completely, reducing the occurrence of flash. As a result, post-molding trimming and finishing operations are significantly reduced, improving production efficiency.
Automated Manufacturing
LSR injection molding can be fully automated, preventing direct contact with external environments. Automated handling and injection reduce the risk of human error and enhance production reliability.
Consistent Product Quality
The uniform distribution of LSR within the mold ensures consistent quality across all parts, minimizing variability between individual components.
High-Volume Production
Advanced LSR materials enable manufacturers to produce complex silicone parts in large volumes with cost-effective and efficient production methods.
Reduced Waste
LSR injection molding is an environmentally friendly process, generating little to no material waste during production. Unlike metals, silicone is recyclable and can be reused to create new products.
Improved Safety
Automation in LSR molding enhances workplace safety by reducing the need for operators to interact with the mold area. Robots, conveyor systems, or chutes handle the removal of finished parts, mitigating risks such as burns or other safety hazards associated with manual handling.

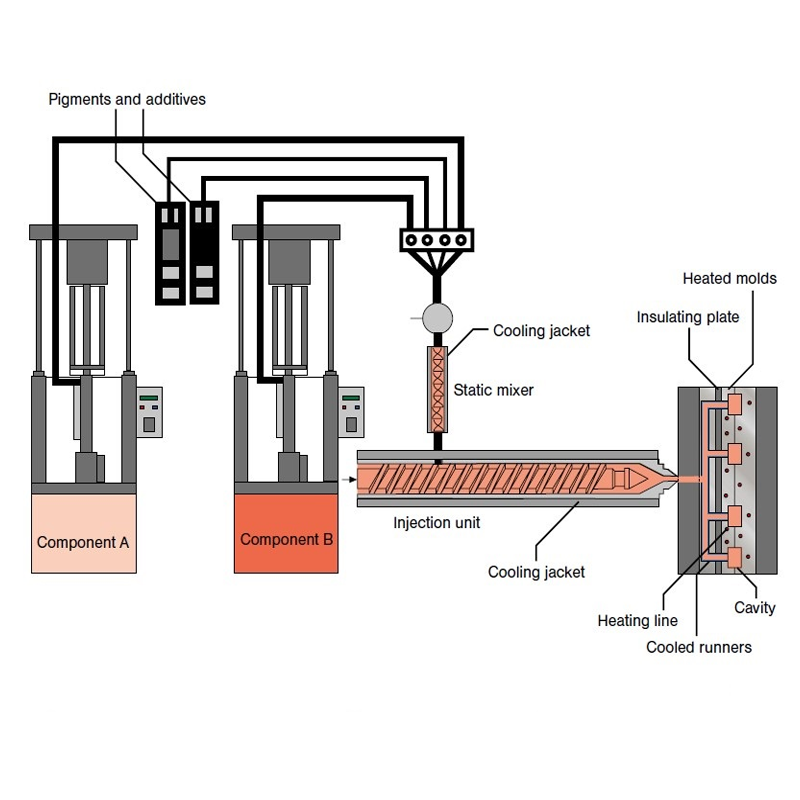

Essential Equipment for Liquid Silicone Rubber (LSR) Injection Molding
To successfully perform liquid injection molding, several key mechanical components must be in place. The process typically involves a metering pump system integrated with an injection unit, connected to either a dynamic or static mixer. Below are the core components of an LSR injection molding machine:
Injection Unit
The injection unit pressurizes the liquid silicone mixture, driving it into the machine’s metering system. The pressure and injection speed can be precisely adjusted to meet the process requirements.
Metering System
This system pumps the two primary liquid components—silicone base and catalyst—while ensuring they are consistently mixed in the correct ratio. This controlled metering guarantees accurate and uniform mixing of the substances.
Supply Containers
The raw materials, typically stored in supply drums or plungers, feed the metering system. These containers hold the base silicone, catalyst, and sometimes pigments, all of which are connected to the main pumping system.
Mixing System
Once the materials leave the metering unit, they are blended using either a static or dynamic mixer. After achieving a homogenous mixture, pressure is applied to guide the silicone compound into the designated mold.
Injection Nozzle
The nozzle directs the material into the mold cavity. It is often equipped with an automated shut-off valve to prevent leakage or overfilling during the injection process.
Mold Clamping System
The mold clamp secures the mold in place throughout the injection process. After the molding cycle is complete, the clamp releases to allow for the removal of the finished part.
These components work in tandem to ensure efficient, high-precision production of LSR parts, maintaining consistency and quality throughout the injection molding process.
LIM Silicone Molding vs. Compression Molding
LIM (Liquid Injection Molding) and compression molding are two distinct processes used in silicone molding, each with its own advantages and applications.
Process Distinction
LIM silicone molding relies on an injection system to deliver liquid silicone into the mold, while compression molding uses force to press silicone material into the desired shape.
Cost Efficiency
From a cost perspective, compression molding is often viewed as the more economical option, ideal for lower production costs. LIM silicone molding, in contrast, is generally more expensive due to the advanced equipment and technology involved.
Speed and Efficiency
LIM offers a more streamlined and efficient process, allowing for faster cycle times and greater automation. Silicone compression molding, however, tends to be slower and requires manual labor, but it can still be effective for smaller production runs.
Product Versatility
LIM is well-suited for producing parts in a wide range of shapes and sizes with minimal manual intervention, enabling higher output with consistent precision. Compression molding, though slower, is versatile enough to create components of various thicknesses, including parts with both thick and thin walls, often with the aid of skilled workers.
Application Differences
LIM silicone molding excels in high-performance thermal, chemical, and electrical applications due to its precision and consistency. On the other hand, compression molding is commonly used for everyday items such as kitchenware, baby products, and pet accessories, where simplicity and cost-effectiveness are prioritized.
Both methods offer unique benefits depending on the complexity, volume, and application of the silicone products being manufactured.
Applications of LSR Injection Molding
Liquid silicone rubber (LSR) injection molding has become a highly adaptable manufacturing technique, serving various industries with precision and efficiency:
Medical and Healthcare
Thanks to its superior biocompatibility, liquid silicone injection molding is an ideal process for medical applications. LSR’s hypoallergenic properties allow it to be safely used on human skin for extended durations. Additionally, its softness and flexibility make it a preferred material in the medical sector.
LSR is frequently employed in manufacturing medical devices such as seals, gaskets, and surgical instruments due to its ability to withstand sterilization methods. Common examples of injection-molded medical components include drug delivery systems, fluid management devices, biotechnological components, catheters, respiratory masks, and protective covers for electronic medical equipment.
Automotive Industry
The automotive industry takes advantage of LSR’s remarkable resistance to extreme temperatures, making it suitable for use near heat-generating parts like engines.
Typical automotive components made from injection-molded silicone include single-wire and radial seals, flange seals, electronic enclosures, A/C vent cushions, and windshield wiper blades. Silicone wiper blades are especially advantageous as they prevent scratching and outlast traditional rubber blades by resisting UV degradation.
Kitchenware Applications
Liquid silicone injection molding is extensively used in the kitchenware industry due to its durability, flexibility, and ease of cleaning. LSR’s heat resistance makes it ideal for various kitchen items, including utensils, bakeware, cookware handles, and food storage containers. Popular products like silicone baking mats and molds offer a non-stick surface, while silicone spatulas and mixing bowls provide flexibility and resistance to staining. Additionally, LSR’s non-toxicity and hypoallergenic properties ensure safety for food contact, enhancing the functionality and appeal of kitchenware products for modern consumers.
Electronics
LSR’s outstanding insulating properties make it a reliable choice for electronic components. Injection-molded LSR parts in the electronics industry include keypads, seals, connectors, watertight gaskets, buttons, and switch pads. These components benefit from LSR’s ability to maintain performance even under harsh conditions.
Consumer Goods
Liquid silicone injection molding is frequently used in the production of various consumer products, including kitchen utensils, wristwatches, wearable technology, toys, pacifiers, baby bottles, and personal care items. LSR is favored in these applications for its durability, flexibility, and ease of cleaning, making it a practical material for everyday use.
By leveraging LSR’s unique properties, manufacturers across industries benefit from enhanced performance, durability, and reliability in their products.
Summary
Liquid silicone rubber injection molding is a highly adaptable and efficient manufacturing method that provides several advantages over traditional rubber molding techniques. Its design flexibility, precision, and consistency make it suitable for a wide range of applications across multiple industries, particularly for mass production and complex geometries.
