In the world of manufacturing, Liquid Silicone Rubber (LSR) and thermoplastics have traditionally been two separate domains, each with its unique set of advantages. Thermoplastics, known for their rigidity and durability, were commonly used in products requiring structure and strength, while LSR’s key advantages—flexibility, heat resistance, and chemical stability—made it ideal for applications where these properties were needed.
Since its introduction in the 1970s, LSR has steadily gained popularity among designers and engineers in various industries. The material’s ability to withstand extreme temperatures, flexibility, non-reactivity, and durability makes it an optimal choice for many demanding applications. However, as the demand for complex, high-performance parts has risen, the need to combine the best properties of both LSR and thermoplastics has led to the emergence of two-shot (2K) molding.
What is Two-Shot Injection Molding?
Two-shot injection molding, or 2K molding, refers to the process of injecting two different materials into a single mold in multiple stages. In the case of LSR 2-shot molding, manufacturers inject LSR into a mold where a thermoplastic substrate is already present. This method allows for the creation of parts that combine the rigidity of thermoplastics with the flexibility, sealing properties, and biocompatibility of LSR, all in a single molding cycle.

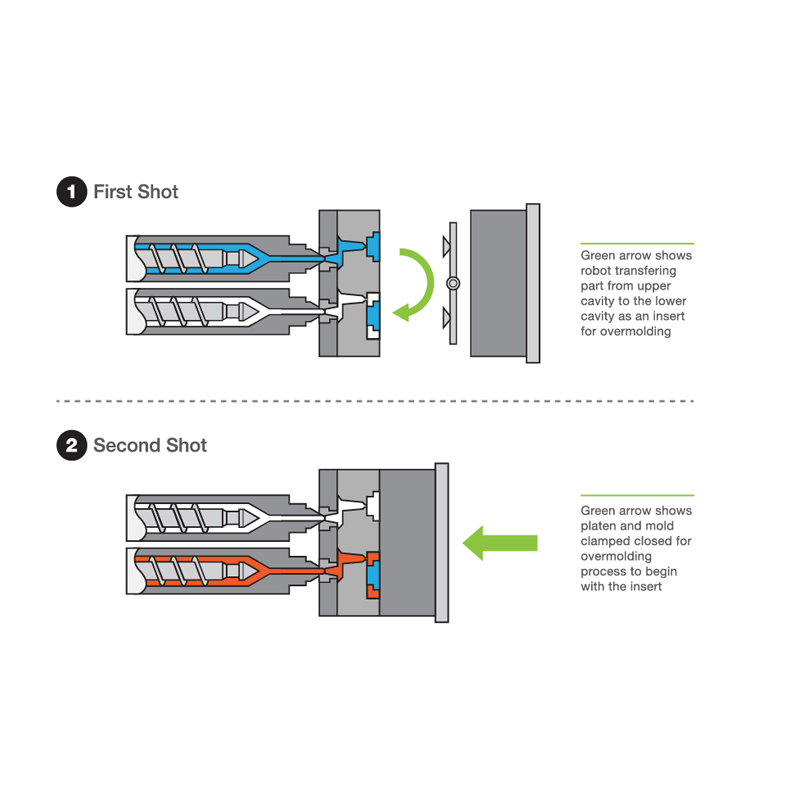

The process involves two distinct steps:
- First Shot: The thermoplastic material is injected into the mold to create the base structure or substrate of the part.
- Second Shot: After the first material has cooled and solidified, LSR is injected onto the thermoplastic substrate to form the soft outer layer or functional over-mold.

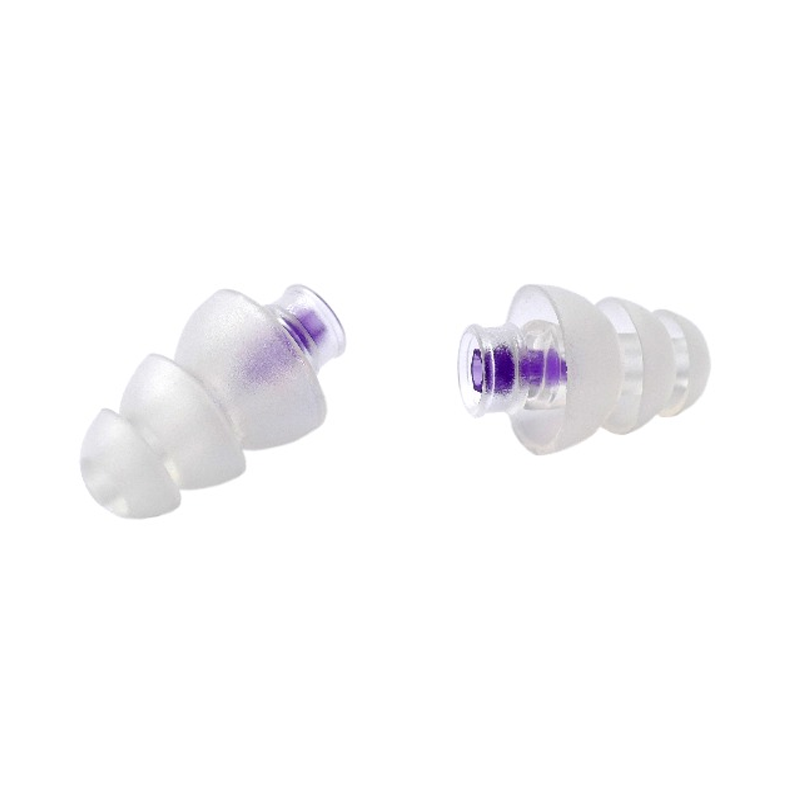

This method is particularly beneficial for parts that require both hardness and softness, such as seals, keypads, medical devices, and electronic components.
Key Benefits of LSR 2-Shot Molding
The advantages of combining thermoplastics with LSR in a 2-shot process are numerous and highly valued in industries ranging from medical to consumer electronics. Here are the primary benefits:
- Enhanced Design Flexibility: With two-shot molding, manufacturers can produce more intricate designs that would be difficult, if not impossible, to achieve with a single material. Parts can feature both rigid and flexible sections, providing the perfect balance of performance and aesthetics.
- Stronger Bonds Without Adhesives: One of the key benefits of 2K molding is that it allows for a chemical and mechanical bond between the two materials, without the need for adhesives. This results in stronger, more reliable parts that can withstand greater stress and offer enhanced durability.
- Improved Product Functionality: Two-shot molding allows designers to incorporate multiple materials that each provide specific functional benefits. For instance, the hard thermoplastic substrate can offer structural integrity, while the LSR provides a soft-touch surface that enhances user comfort and functionality, especially in consumer electronics and medical devices.
- Cost and Time Efficiency: By combining two materials in a single molding cycle, manufacturers reduce the need for additional assembly steps, lowering labor costs and production times. The ability to mold both materials simultaneously also cuts down on material waste and tooling expenses.
- High-Performance Parts: The LSR material’s unique properties—such as heat resistance, chemical resistance, and the ability to maintain performance under extreme conditions—make it ideal for creating high-performance parts. Whether it’s a high-temperature gasket for an automotive application or a flexible membrane for a medical device, LSR ensures that the end product will be durable and reliable.
- Cleaner Manufacturing: Since 2K molding requires fewer steps than traditional molding methods, it leads to a cleaner manufacturing process. There’s less risk of contamination between materials, and fewer separate components are needed, which helps streamline production and reduce waste.
Applications of LSR 2-Shot Molding
The versatility of LSR 2-shot molding makes it applicable to a wide range of industries, including automotive, medical, consumer electronics, and industrial equipment. Here are some key applications:

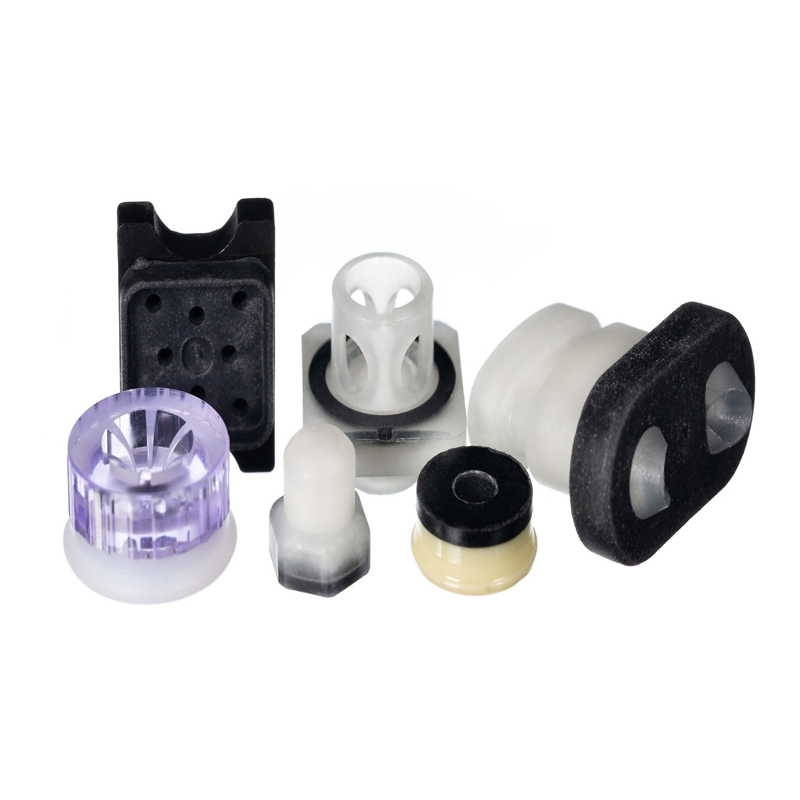

– Medical Devices: LSR’s biocompatibility and flexibility make it the ideal material for medical components such as seals, gaskets, and tubing. In 2K molding, thermoplastics are used to form rigid components, while LSR provides the necessary flexibility and sealing capabilities, ensuring that the part functions as required.
– Consumer Electronics: Devices like smartphones, wearables, and household appliances often require parts that are both durable and flexible. LSR 2-shot molding is used to create ergonomic keypads, seals, and protective covers that withstand wear and tear while maintaining aesthetic appeal.
– Automotive Components: Automotive parts, such as gaskets, seals, and flexible components, benefit greatly from the combination of thermoplastics and LSR. The thermoplastic base offers rigidity for structural strength, while the LSR ensures flexibility and resistance to extreme temperatures and chemicals.
– Industrial and Defense Applications: LSR’s resistance to extreme conditions, coupled with the strength of thermoplastics, makes it ideal for industrial and defense parts, where high-performance requirements are crucial.
Design and Manufacturing Considerations for LSR 2-Shot Molding
When designing components for two-shot molding, it’s crucial to work closely with an experienced manufacturer who understands the complexities of both LSR and thermoplastic materials. Proper design and material selection are key to achieving optimal results.
- Material Compatibility: One of the most critical aspects of successful 2-shot molding is ensuring that the two materials bond properly. Thermoplastics and LSR have different chemical compositions, so it’s essential to choose compatible materials that will form a strong, lasting bond without the need for additional bonding agents.

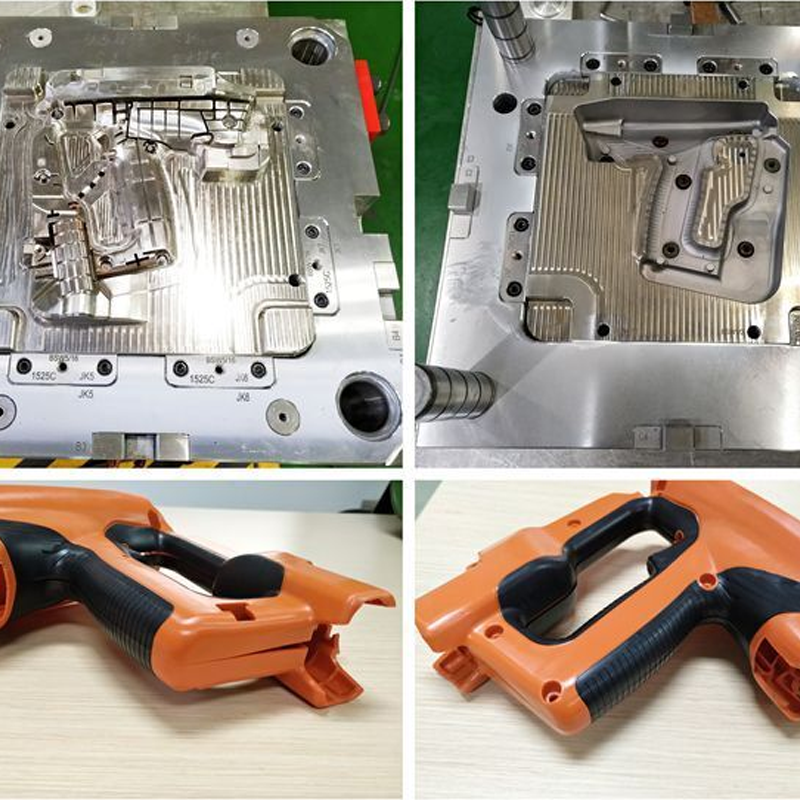

- Mold Design: The mold must be designed to accommodate both materials and ensure that the LSR is injected in the correct locations. The mold must also be able to handle the temperature differences between the two materials, as thermoplastics typically require higher temperatures than LSR.
- Cycle Time: The time it takes to complete a 2-shot molding cycle depends on factors such as material types, part complexity, and mold design. Efficient cycle times help minimize costs and increase production rates.
- Substrate Temperature: The temperature of the thermoplastic substrate is crucial for ensuring proper bonding with the LSR. Substrate preheating or controlled mold temperatures are often necessary to ensure a smooth and successful molding process.
Kitchenbathsilicone Is Your Partner in LSR 2-Shot Molding
At Kitchenbathsilicone, we specialize in Liquid Silicone Rubber (LSR) injection molding, and our expertise extends to the advanced technique of 2-shot molding. Our state-of-the-art manufacturing capabilities allow us to deliver high-performance, precision-engineered parts that meet the most demanding industry standards.
As a leader in silicone product manufacturing, we understand the intricacies of combining LSR with thermoplastics. Our team of experts works closely with clients from concept through production to ensure that the final product is not only functional but also meets all performance and quality requirements.
Whether you’re developing a medical device, consumer electronics component, or automotive part, Kitchenbathsilicone offers the technical expertise, state-of-the-art equipment, and reliable production capabilities to help you achieve your project goals.
Why Choose Kitchenbathsilicone?
– Specialization in LSR: Unlike general molders, our factory is dedicated to LSR, giving us unparalleled expertise in silicone molding processes.
– Custom Solutions: We work with you to understand your specific needs and develop custom solutions that meet both design and functional requirements.
– Efficient Production: Our focus on efficiency helps reduce costs and production times, all while maintaining the highest quality standards.
– Advanced Technology: Our advanced molding technology and machinery ensure precise and reliable production of complex 2-shot molded parts.
We invite you to contact Kitchenbathsilicone today to discuss your next project. Whether you’re designing a medical device, automotive part, or consumer product, we can help you leverage the benefits of 2-shot molding to create high-performance, cost-effective components. Let’s work together to bring your ideas to life.
